for ZC33S |
for ZC32S |
When you fit our RRP Rear Camber Shim to your car, you can add the rear camber -1 to -2 degrees with improving rear stability when cornering and also reduced the uneven wear of the tire in circuit racing.
Also you can fit to shallow off-set wheels too so there will be many benefit for you.
Benefit
1)You can reduce the outside uneven wear for the rear tires when you run your car in winding road and circuit racing.
2)You can fit the off-set wheel and different size of wheel you could not fit with a normal camber angle so your selection for the wheel will be wide. Also looks is nicer !!
3)By fitting RRP Rear Camber Shim, you can select minus 1 (-1) degree or minus 2 (-2) degree of rear camber angle but there’s no changes for toe.
[ as for the real camber angle ]
You can add minus 1 (-1) degree or minus 2 (-2) degree than the stock angle.
In Suzuki Swift Sport Workshop manual, it is written that -1 15’ in stock condition.
If you add our shim to your car, it will be -2 15’ and -3 15’. But there is a crossing range in stock condition so please check the real camber angle by yourself.
4)We adopted the material of camber shim S45C steel instead of aluminum considering the safety reason. Also we measured the rusting with a Cathodic Electrodeposition.

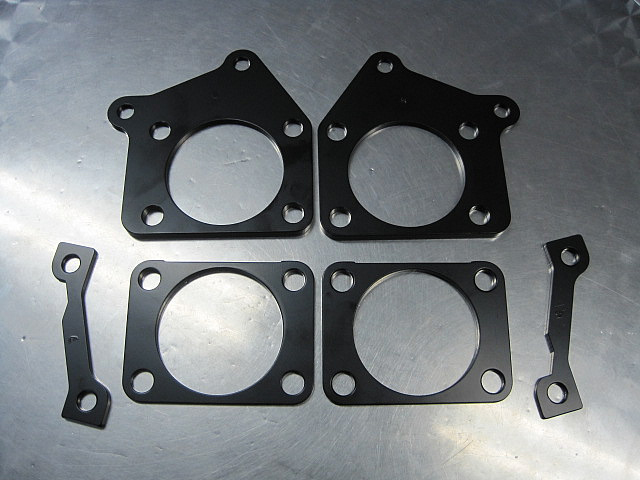

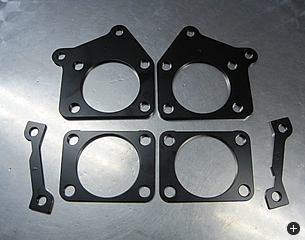

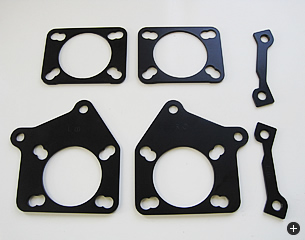

5)The kit is included the original bolts and special designed behind side shim to reinforce.
-

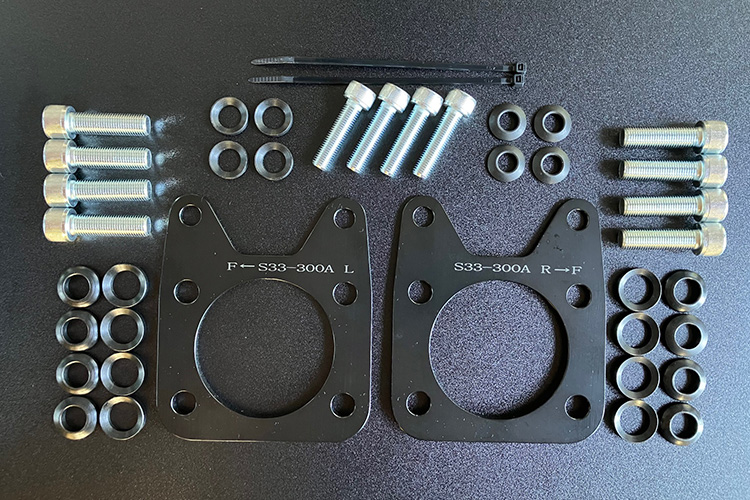

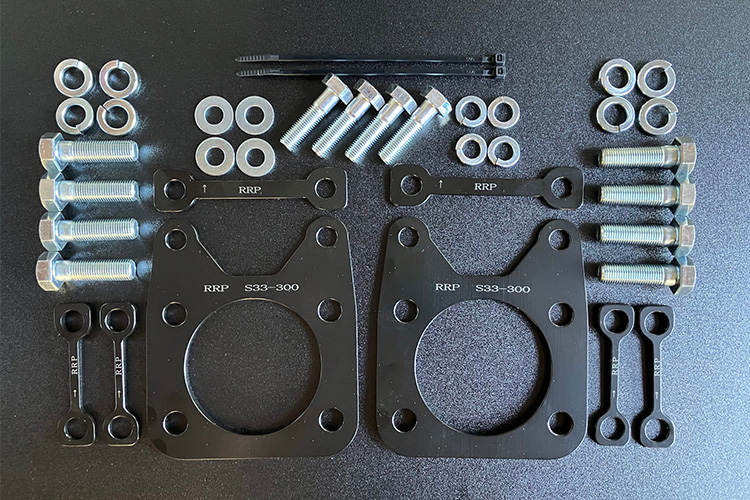

S33-300 RRP Rear Camber Shim Kit (Omori) for ZC33S

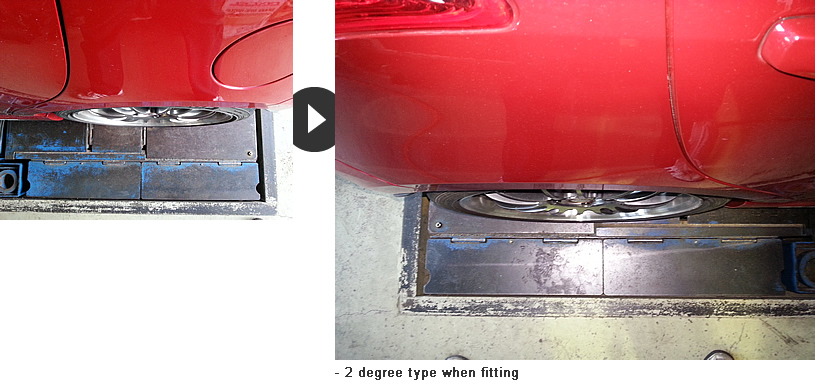

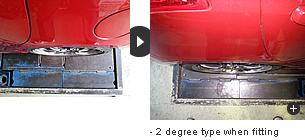

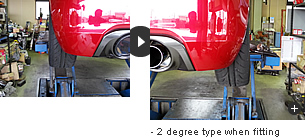

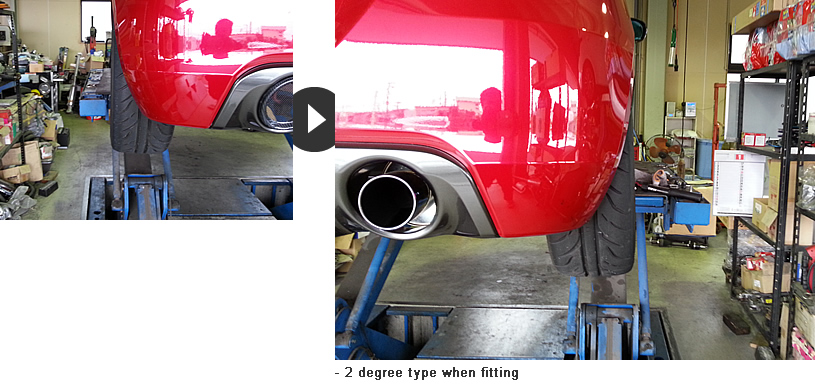

(- 2 degree type when fitting)
Fit : ZC33S Swift SportS33-301 RRP Rear Camber Shim Kit (nami-mori) for ZC33S
(-1 degree type when fitting)
Fit : ZC33S Swift SportS32-306A RRP Rear Camber Shim Kit (Omori) for ZC32S
(- 2 degree type when fitting)
Fit : ZC32S Swift Sport and ZC72S Swift RS(Rear disc brake car)S32-306B RRP Rear Camber Shim Kit (nami-mori) for ZC32S and ZC72S
(-1 degree type when fitting)
Fit : ZC32S Swift Sport and ZC72S Swift RS(Rear disc brake car)
