K14C engine newly installed in the new Swift Sports
In order to bring out potential performance, it was thoroughly tested and made a muffler with the goal of ultimate exhaust efficiency!

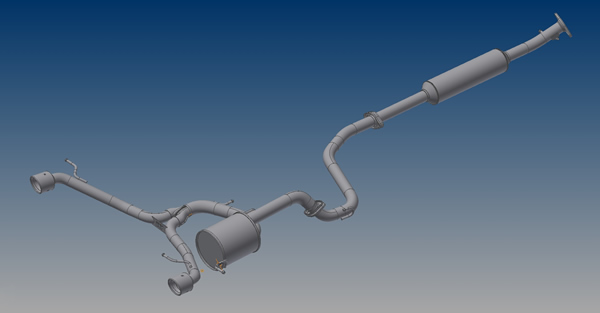

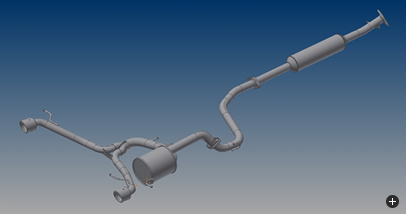

We adopted the muffler layout to inherit the pedigree of ZC31S, ZC32S, and reproduced performance and product quality which have never existed.
Rear tail is made of expensive material with hardened steel made of 93Φ titanium.
Aiming at performance improvement, adopt the thickness of stick of 54Φ → 60Φ → 50Φ!It is a specification with a center pipe.
In this muffler, we adopted a spring tensioner for prevention of misalignment to cope with displacement of the tail end peculiar to Swift Sports, so we dealt with it.
Comfortable bass sound
Sound quality is comfortable bass sound as good as indoors!
Outside the car, it is good that you do not care about residential areas.
Of course I was also attentive to the sounds of the muffled sound inside the room.
It is the best finish aiming at balancing both quiet sound and ultimate performance improvement.
All stainless steel

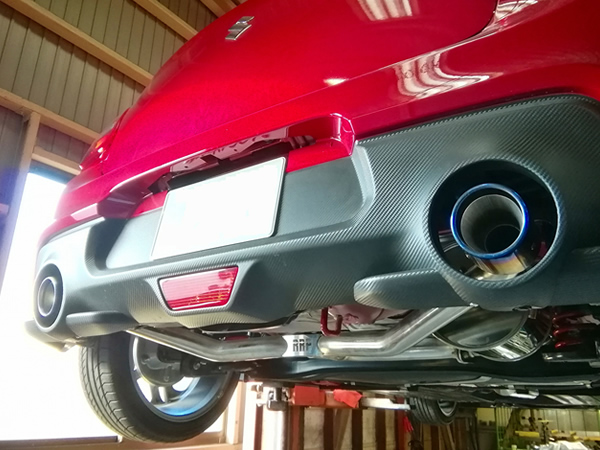

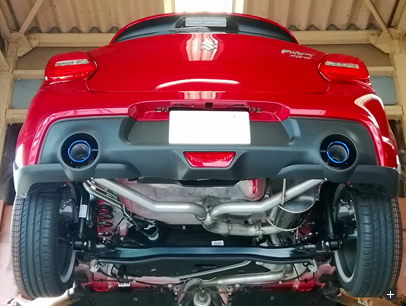

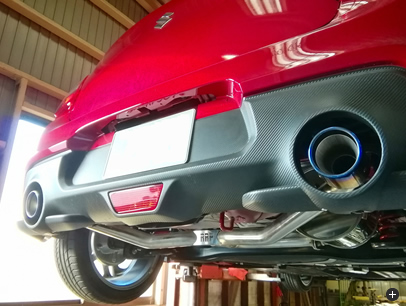

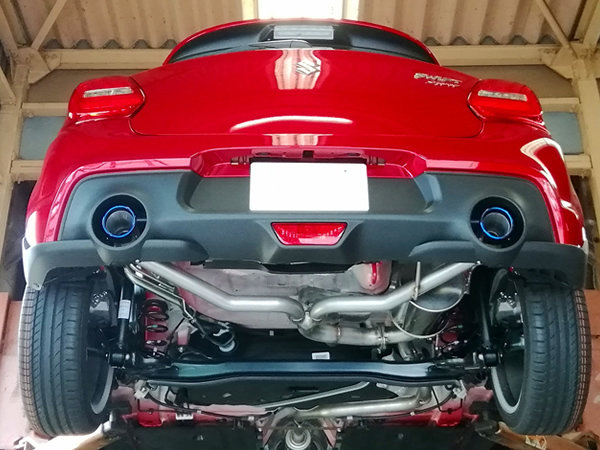

Left and right W tail
With center pipe
Main pipe 54 Φ → 60 Φ → 50 Φ
Tail end Titanium baked entering 93Φ × 2
With spring tensioner for preventing slippage
Vehicle inspection correspondence JQR 20174242
volume
Acceleration sound 72 dB
Proximity Left side 86 dB Right side 88 dB
Idling 56 dB left and right

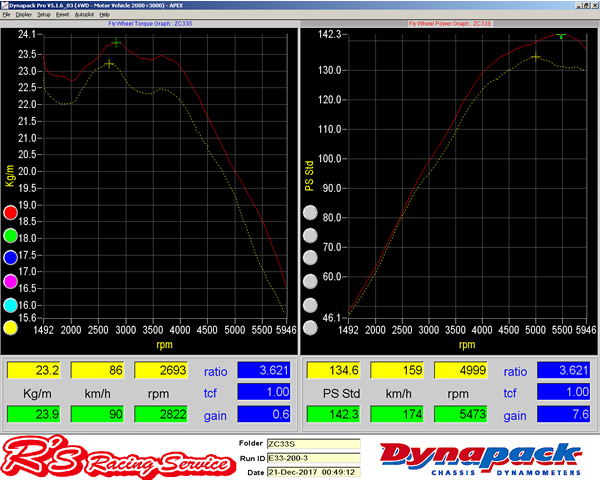

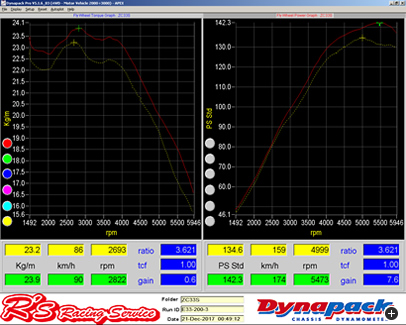

Dynapack measurement
E33-200:
RRP High Performance Muffler Ⅰ
fit
ZC33S Swift Sports MT only
Type 1 CBA-ZC33S 2017.09~2020.04 ZC33S-100001~
Type 2 4BA-ZC33S 2020.05~2022.08 ZC33S-400001~
Type 3 4BA-ZC33S 2022.09~2023.09 ZC33S-500001~
Type 4 4BA-ZC33S 2023.11~ or later ZC33S-600001~
148,500 JPY
RRP High Performance Muffler I-R
Developed as a model concerned with the ultimate exhaust efficiency and exhaust sound that brings out the performance of the K14C engine!
As with RRP High Performance Muffler I, RRP traditional muffler layout is used, but the rear silencer is cancelled for higher efficiency, and only the front silencer is used to muffle the sound and reduce exhaust resistance.
The reduction of the silencer also contributes to a weight reduction of 24% compared to the factory model, and furthermore, the exhaust sound can be enjoyed from idling to acceleration compared to the Muffler I.
Of course, the JQR certified part number for pre-certification of the muffler has been acquired, so vehicle inspections are assured.
In terms of design, the outer diameter of the muffler tail has been enlarged to 105mm in diameter with R's logo on the titanium tail.
All stainless steel left and right hand side out
With center pipe
Main pipe 54φ→60φ→50φ
Titanium burn-in tail end 105φ×2
Earl's logo on the tail
24% weight reduction compared to stock
Car inspection compliant JQR10204127
Volume Acceleration: 81dB Proximity: 92dB
E33-210:
RRP High Performance Muffler I-R for ZC33S
fit
ZC33S Swift Sports MT only
Type 1 CBA-ZC33S 2017.09~2020.04 ZC33S-100001~
Type 2 4BA-ZC33S 2020.05~2022.08 ZC33S-400001~
Type 3 4BA-ZC33S 2022.09~2023.09 ZC33S-500001~
Type 4 4BA-ZC33S 2023.11~ or later ZC33S-600001~
